Single Peak Windbreak Panel: One corrugated peak with perforated faces. Main dimensions are 200-450 mm formed width; 1-8 m length.
Galvanized or color-coated steel sheet. Thickness or wire size: 0.5-5.0 mm.
Description

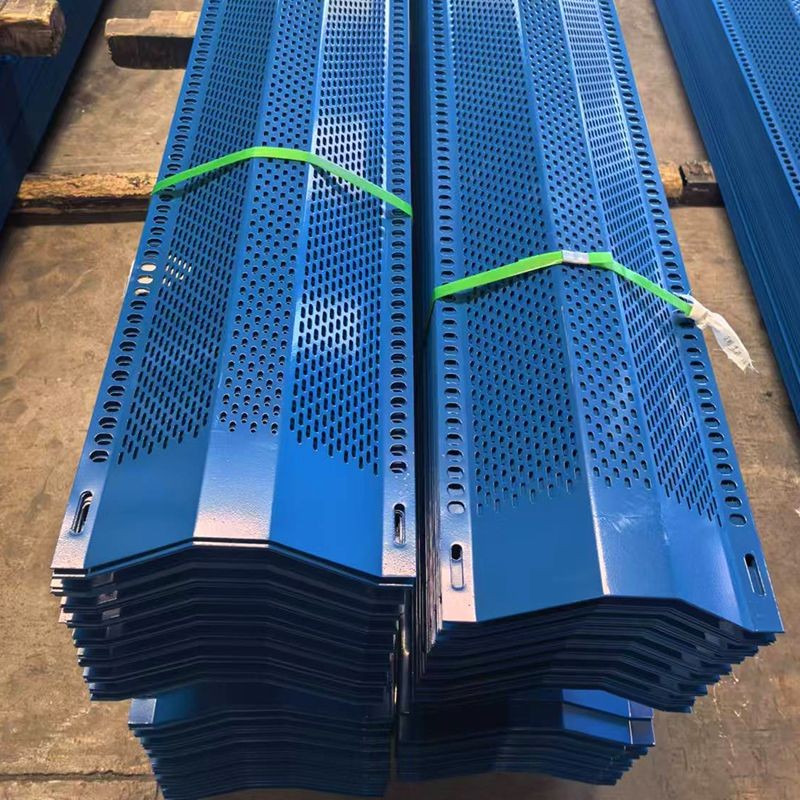

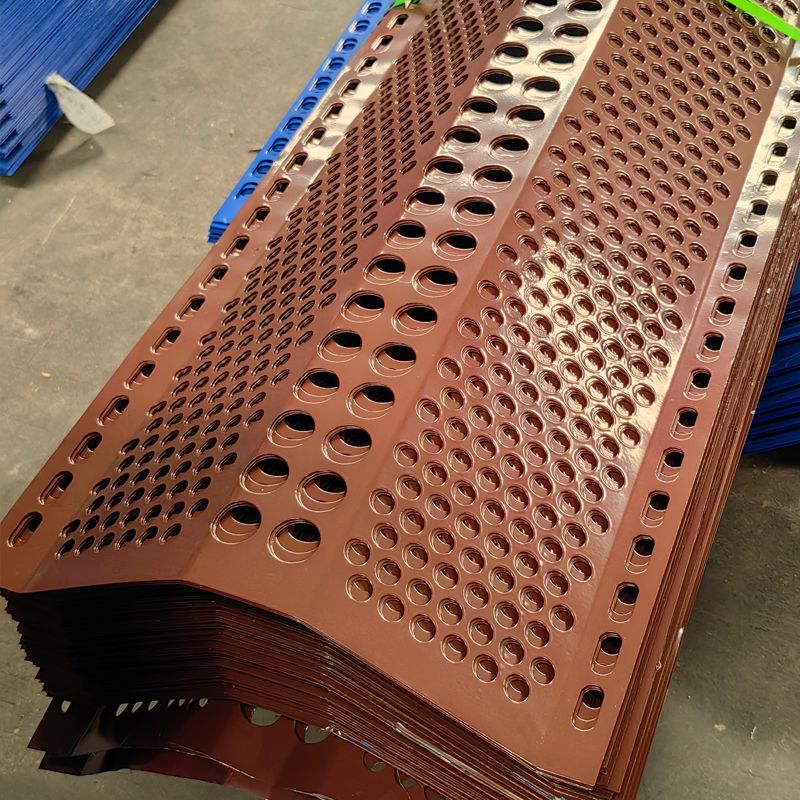

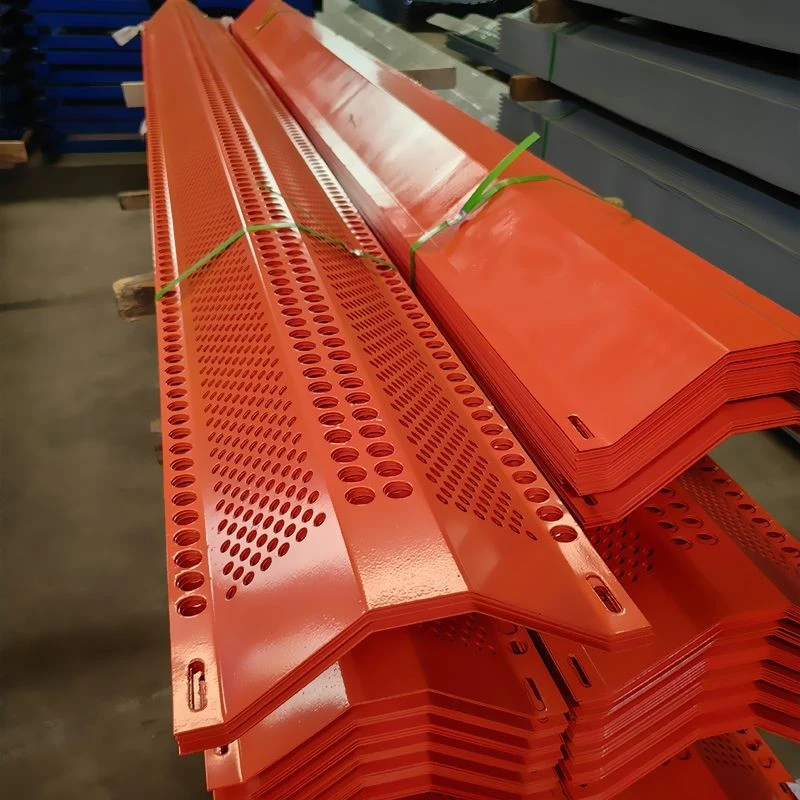

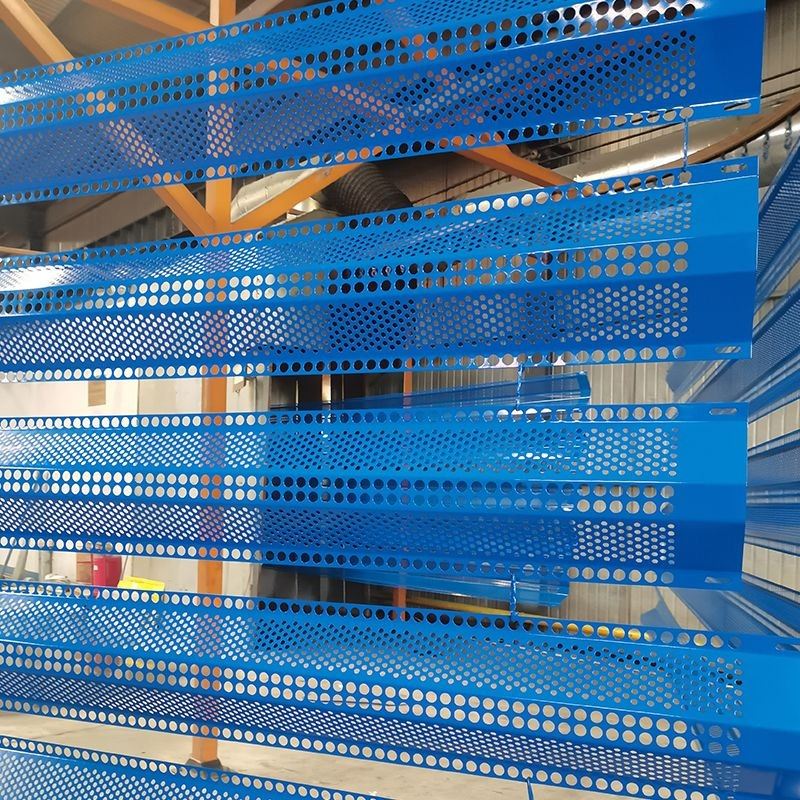

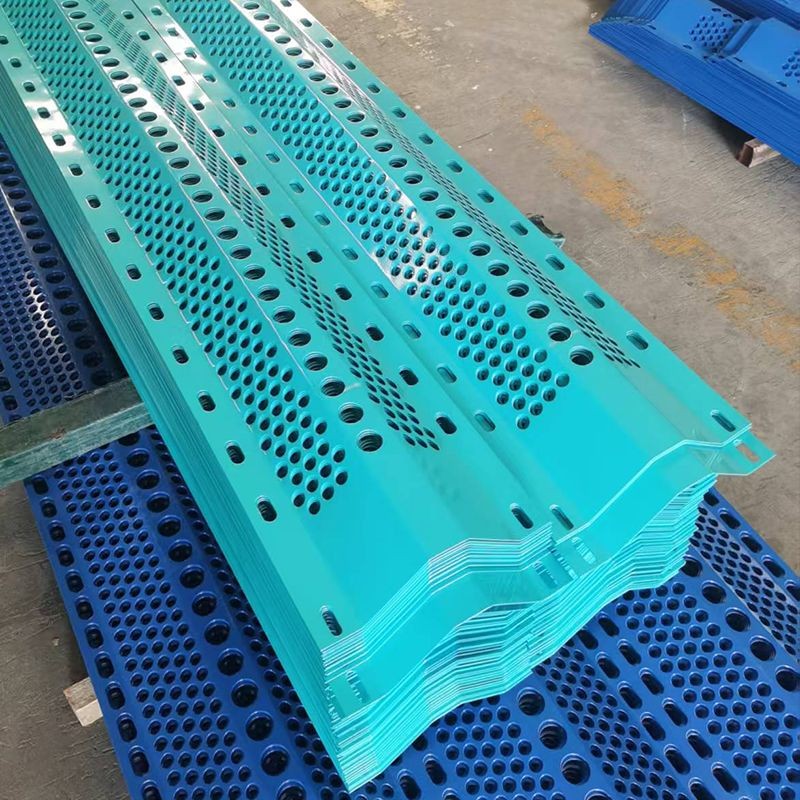

The Single Peak Windbreak Panel is a perforated metal sheet formed with one continuous peak and used as the main infill of a modular windbreak wall. The formed rib adds longitudinal stiffness, while the perforated area breaks up incoming wind before it reaches the sheltered side. Because the panel is relatively narrow, long walls can be assembled from repeatable sections that are easier to transport, lift, and replace than one large sheet. The same profile can be produced in different lengths and formed widths to suit post centres, transport limits, and wall segmentation.
-
3 +Fully automated CNC punching lines
-
5 +CNC perforating presses
Main Applications
- Open coal yards
- Port stockyards
- Mining material areas
- Railway bulk-storage zones
- Industrial plants
- Construction material yards
Components
| Single-peak perforated sheet | provides the main wind-reduction surface. |
| Formed peak | acts as a stiffening rib and helps the panel retain its shape. |
| Fixing holes | provide defined attachment points to rails or posts. |
| Connection hardware | holds adjacent panels and support members in position. |
| Support structure | carries the panels and completes the windbreak wall. |
Product Features
In Single Peak Windbreak Panel, the single formed rib improves panel stiffness and supports stable repeated installation.
Panel length, fixing points, and overlap direction can be confirmed before production to reduce incorrect site assembly. Galvanized or color-coated steel can be selected with a finish appropriate to the exposure level. Individual modules can be removed and replaced when local damage occurs.
FAQ
Q: Is the single ridge suitable for coastal use?
A: On a Single Peak Windbreak Panel project, the geometry can be used there, but the steel and coating system must be selected for salt exposure.
Q: How are long sheets handled?
A: Length, bundle weight, lifting space, and unloading equipment are reviewed before packing.
Q: Can the formed width be changed?
A: Widths outside the regular range require confirmation of tooling and sheet behaviour before production.
