Perforated mesh panels: Round, square, slot, diamond, hexagonal, or decorative holes. Typical dimensions: 0.5-200 mm hole diameter, subject to material and sheet thickness.
The confirmed build uses stainless steel, low-carbon steel, galvanized steel, aluminum, copper, or PVC sheet. Relevant size: 0.2-20 mm.
Description

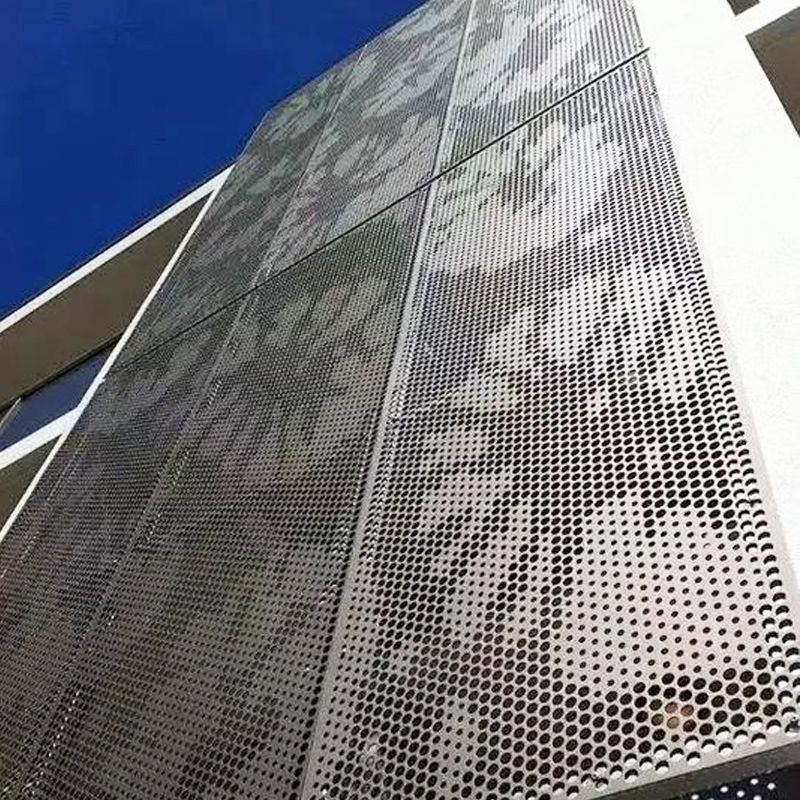

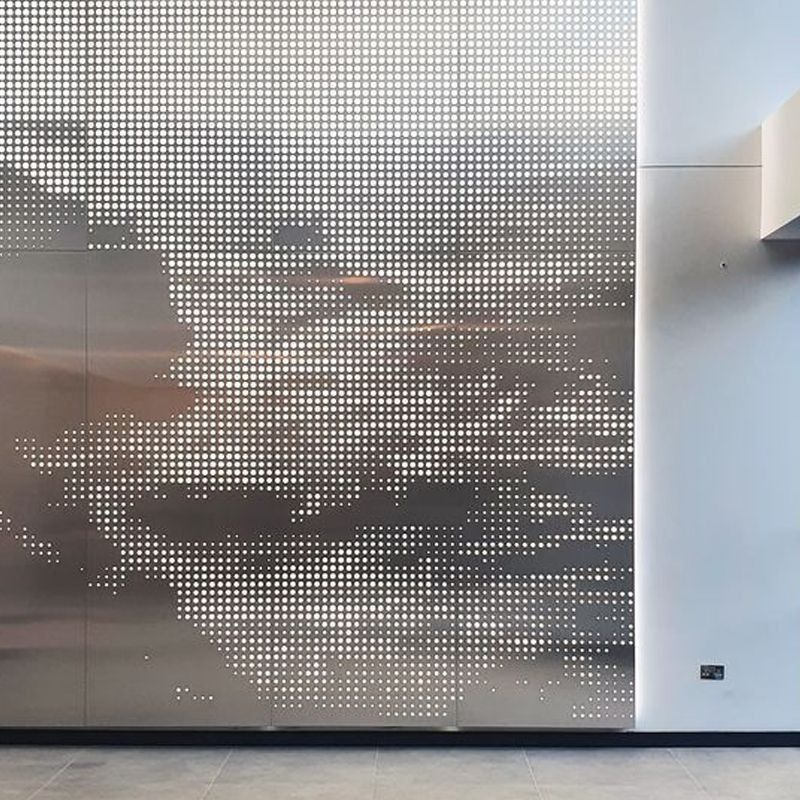

Perforated mesh panels are metal sheets punched with regular or custom openings for ventilation, screening, guarding, filtering, or architectural use. Hole shape, diameter, pitch, open area, sheet thickness, border width, and folds can all be specified to suit the job. A continuous sheet gives the panel the basic integrity of plate material, while the perforated area allows air, light, or selected particles to pass. The right pattern depends on function: a ventilation panel is judged differently from a screen or machine guard.
-
3 +Fully automated CNC punching lines
-
5 +CNC perforating presses
Product Parameters
|
Item |
Available specification |
|
Base material |
Stainless steel, low-carbon steel, galvanized steel, aluminum, copper, or PVC sheet |
|
Sheet thickness |
0.2-20 mm |
|
Hole diameter |
0.5-200 mm as stated in the supplied product material |
|
Hole shapes |

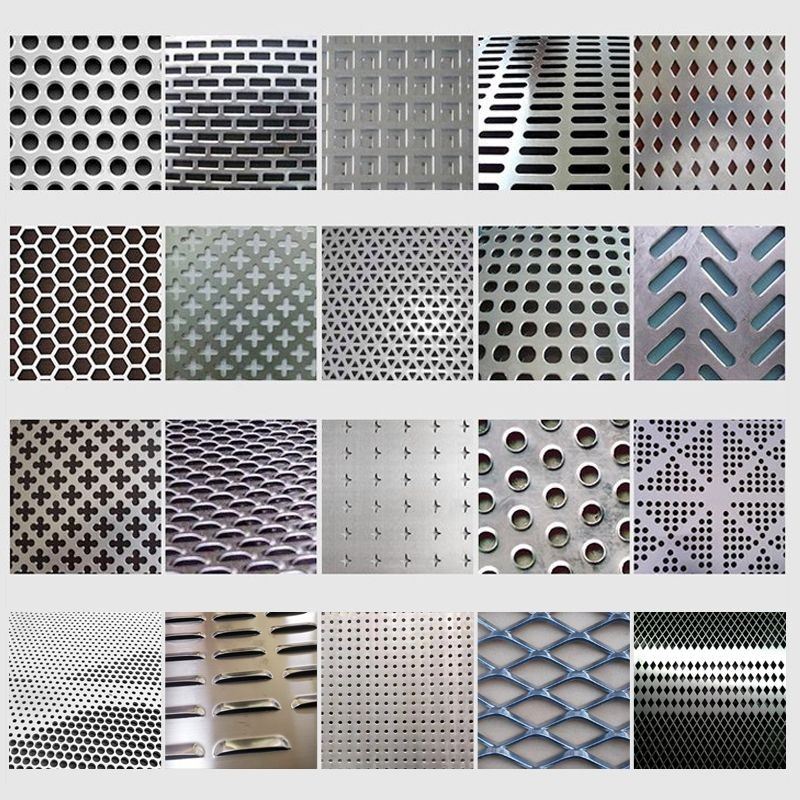

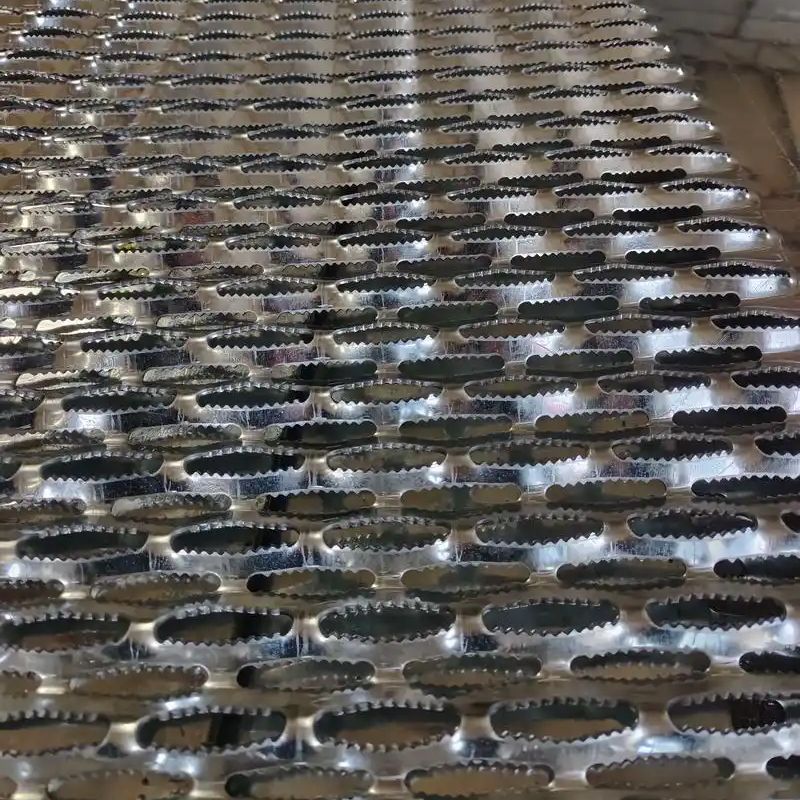

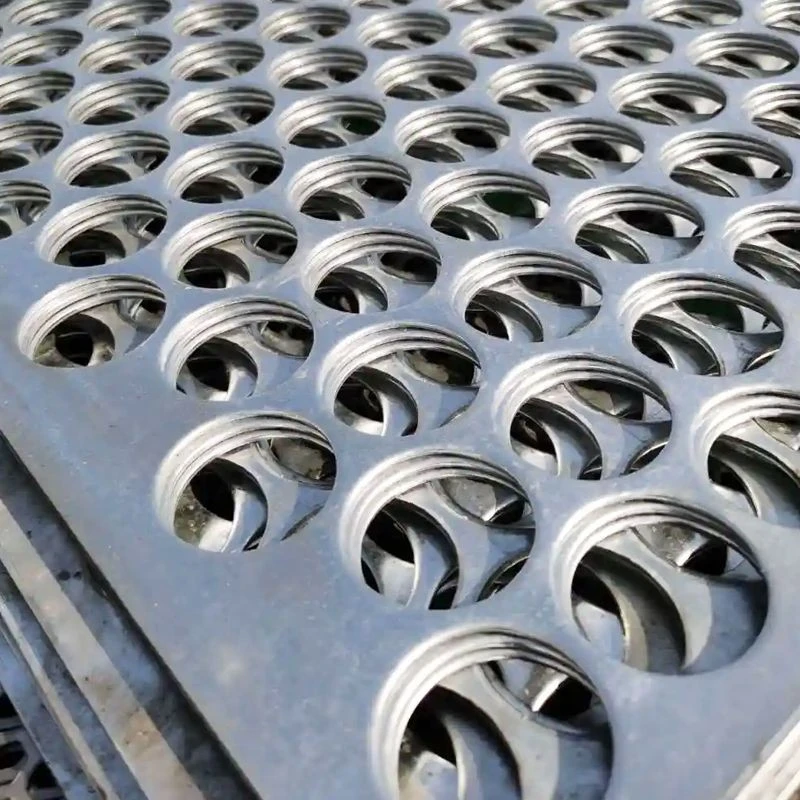

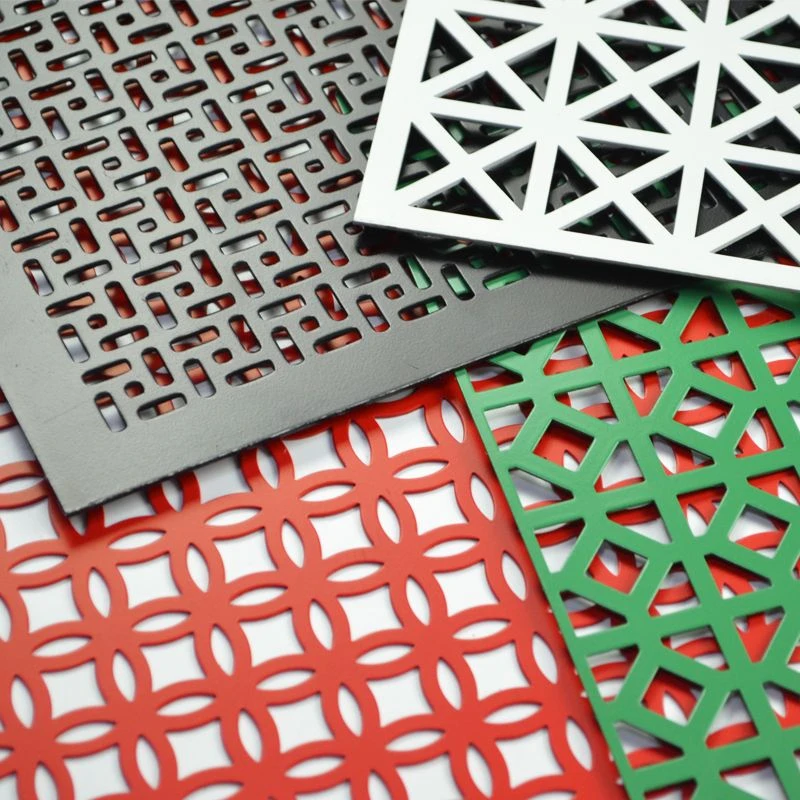

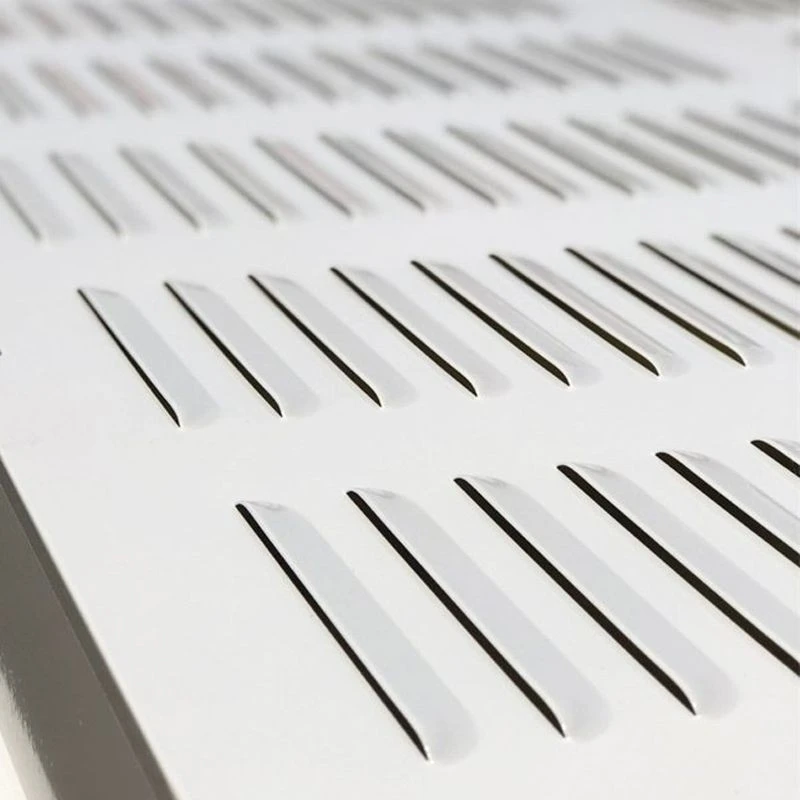

Round, rectangular, square, diamond, hexagonal, cross, triangular, oblong, decorative, raised, and other specified patterns |
|
Product forms |
Patterned, formed, thick, thin, micro-perforated, wire-cut, or laser-produced sheet |
Product Features
In perforated mesh panels, hole pattern and external dimensions can be produced directly from CAD or DXF files for repeat work.
Folds and mounting holes can be built into the part before delivery, reducing secondary cutting on site.
Stainless steel, galvanized steel, aluminum, or low-carbon steel can be selected with a suitable finish.
FAQ
Q: What is the smallest hole you can make?
A: For a perforated mesh panels order, the source range starts at 0.5 mm, but feasibility depends on sheet thickness, material, pitch, and tool life. Its final details are shown on the approved the product drawing.
Q: Can different hole shapes share one sheet?
A: Yes, when the layout leaves sufficient metal between openings and suitable tooling is available.
Q: Are panels delivered flat?
A: They can be flat, folded, rolled, or framed according to the approved drawing.
